ISEO R6 - Oval Profile Single Cylinder (R6 8811-S)

From £22.85 excl. VAT

Choose your options below

Share this product

Description

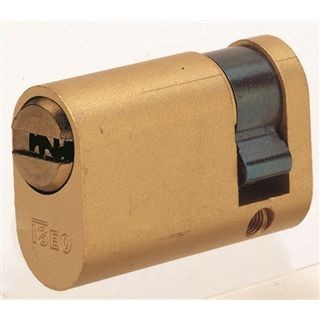

A solid brass oval cylinder available in either polished brass finish or plated in satin nickel.

This is a standard shape oval cylinder and is therefore compatible with the complete range of oval-profile, lever-lock door handles and oval-profile mortice locks.

Please note; measurements are taken from the edge of the lock to the centre. The first measurement shown is the "key" side.

This oval cylinder works off a 2.85mm thick, reversible dimple (or “flat”) key, suitable where additional key security is required.

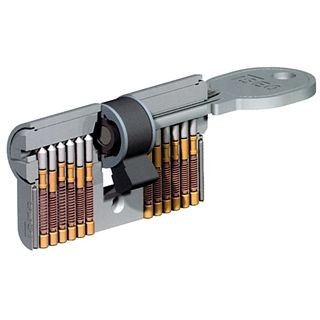

Comprising six pins (including “anti-pick” spool pins), this cylinder is supplied with three keys as standard or two keys for “Keyed Alike” and “Masterkey” suites. This oval cylinder can be suited to work with any of the other ISEO R6 locks available (euro profile, rim etc).

Each cylinder comes with its own, unique set of keys or, if buying more than one set, can be supplied “Keyed Alike” or as a “Masterkey Suite”.

Keyed Alike – Each cylinder works off the same key

Masterkey Suite- Each cylinder can work off a separate key, with an additional key which will open them all

Please contact us at the email address below if you would like to discuss Keyed Alike or Masterkey Suites.

Dimensions

30-10mm
35-10mm
40-10mm

Set Items

Each Oval Cylinder Set Contains:
1 x Oval Cylinder
1 x Fixing Bolt
3 x Keys (2 keys if suited)

Lead Times & Delivery

Please note, we usually have these oval cylinders dispatched within three working days.
If you would like to check stock levels before ordering, please mail us at the email address below.

We are happy to export orders outside of the UK. Please mail us at the email address below and we will send you a quote with estimated lead time:
