Union BS3621 2007 Sashlock (UN 2234-E)

From £47.34 excl. VAT

Choose your options below

Share this product

Description

Please note; this is a 5 Lever BS3621 insurance graded lock

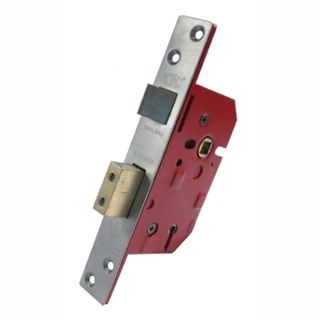

A good quality, insurance graded sashlock.

This sashlock is up to the new European standards; British Standard 3621 2007. Comprising a 20mm “throw” on the anti-saw bolt, hardplate and anti-pick levers, this sashlock is suitable for use on any external door.

These sashlocks have standard 57mm centres (the measurement from the centre of the spindle to the centre of the keyway) and so are compatible with the complete range of lever on plate door handles.

Please remember to check the “backset” size when ordering. This is the distance from the edge of the door to the centre of the keyway.

Dimensions

Size

Backset

Centres

Case Size

Faceplate

2.5”

44mm

57mm

67 x 108mm

177 x 25mm

3”

57mm

57mm

80 x 108mm

177 x 25mm

Set Items

Each Sashlock Set Contains:
1 x 5 Lever Sashlock
1 x Strike Plate (Frame Side)
1 x Cover Plate for Lock
2 x Keys
Fixing Screws

Lead Times & Delivery

Please note, we usually have these sashlocks dispatched within three working days.
If you would like to check stock levels before ordering, please mail us at the email address below.

We are happy to export orders outside of the UK. Please mail us at the email address below and we will send you a quote with estimated lead time:
sales@britishironmongery.co.uk
