Description

Please note; this is an Oval Profile Sashlock, so also needs an additional oval profile cylinder to work.

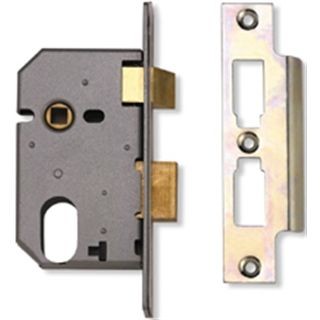

A good quality oval profile mortice sashlock, for use on internal doors.

These sashlocks have 48mm centres (the measurement from the centre of the spindle to the centre of the keyway) and are compatible with the complete range of oval-profile, lever on plate door handles.

Please remember to check the “backset” size when ordering. This is the distance from the edge of the door to the centre of the keyway.

Dimensions

Size	Backset	Centres	Case Size	Faceplate
2.5”	45mm	48mm	65 x 108mm	152 x 25mm
3”	57mm	48mm	77 x 108mm	152 x 25mm

Set Items

Each Sashlock Set Contains:
1 x Oval Profile Sashlock
1 x Strike Plate (Frame Side)
1 x Cover Plate for Lock
Fixing Screws

Lead Times & Delivery

Please note, we usually have these sashlocks dispatched within seven working days.
If you would like to check stock levels before ordering, please mail us at the email address below.

We are happy to export orders outside of the UK. Please mail us at the email address below and we will send you a quote with estimated lead time:
[email protected]
